| Type |
Configuration |
Schematic |
| Guitar |

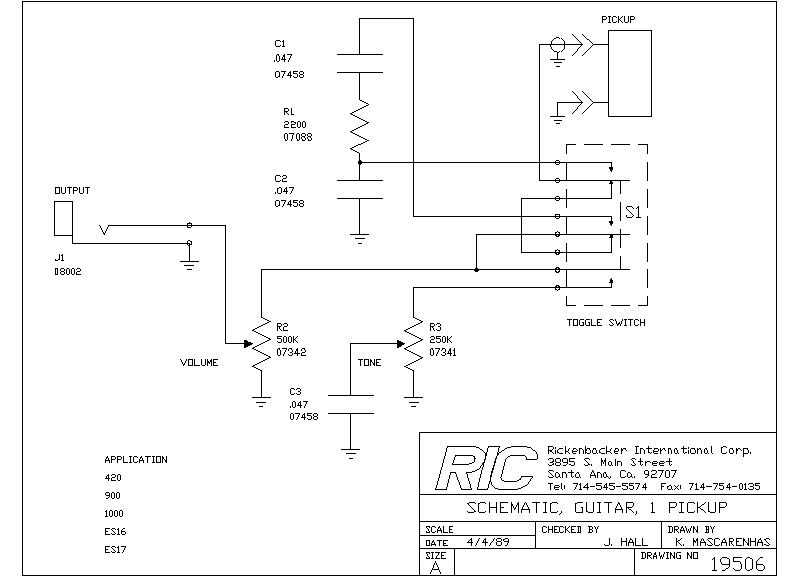

2 CNTL, 1 P/U, Mono |
 |
|
2 CNTL, 1 Dual Coil P/U, Mono |
|
|

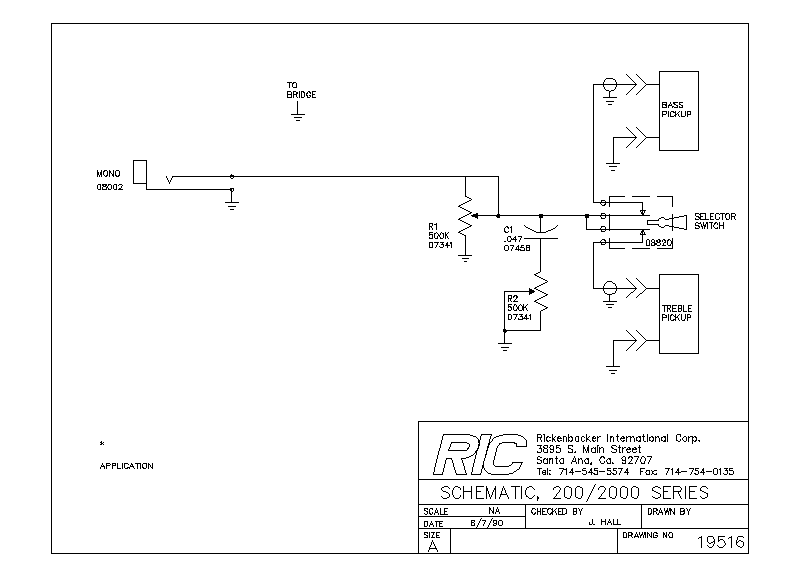

2 CNTL, 2 P/U, Mono |
|
|
4 CNTL, 2 P/U, Mono |
|
|
4 CNTL, 2 P/U, Mono, Phase Switch |
|
|

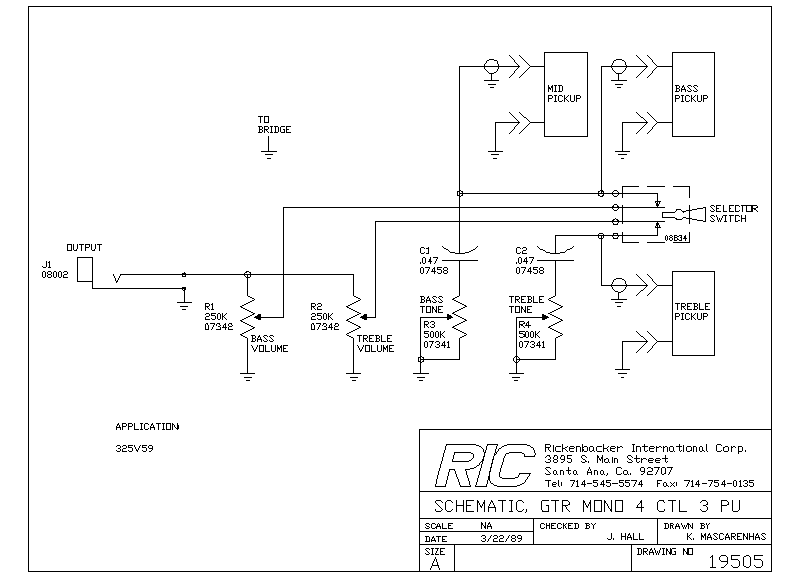

4 CNTL, 3 P/U, Mono |
|
|

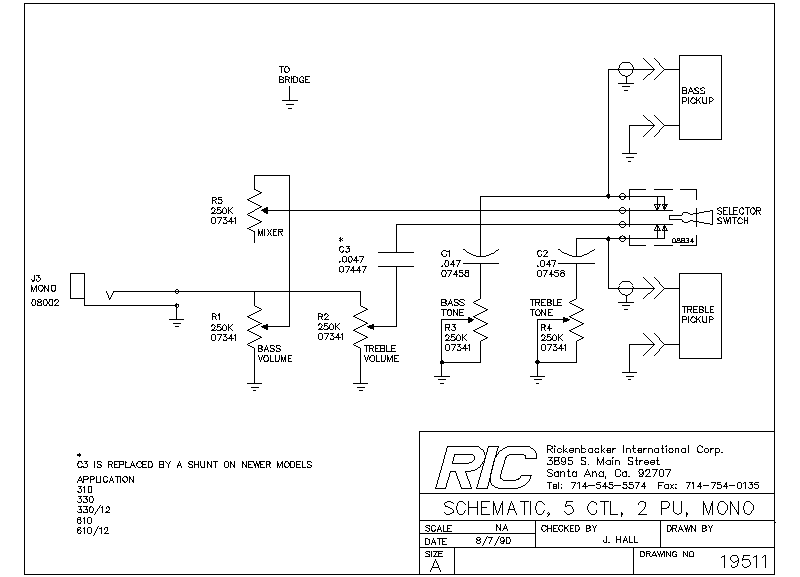

5 CNTL, 2 P/U, Mono |
|
|

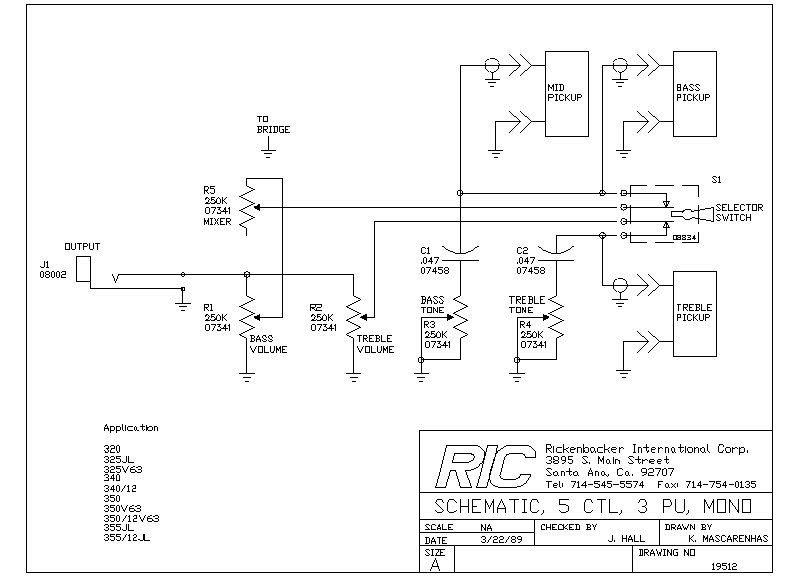

5 CNTL, 3 P/U, Mono |
|
|

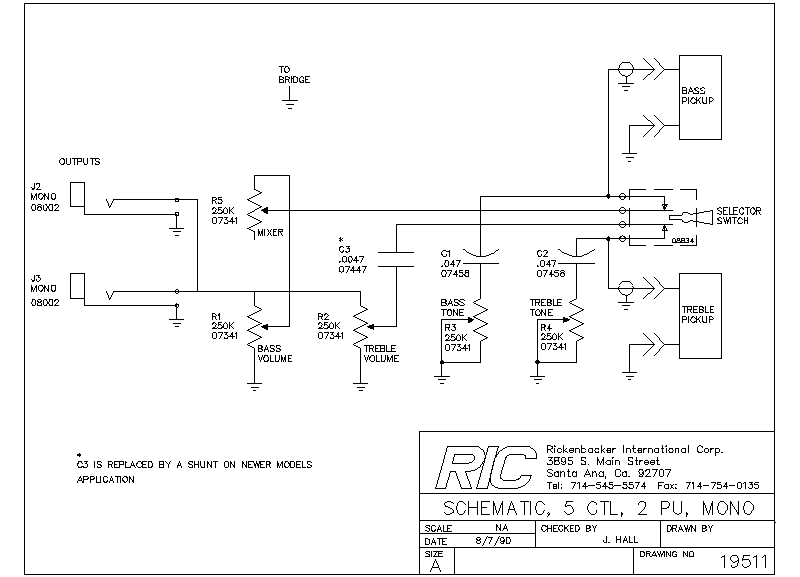

5 CNTL, 2 P/U, Dual Mono |
|
|

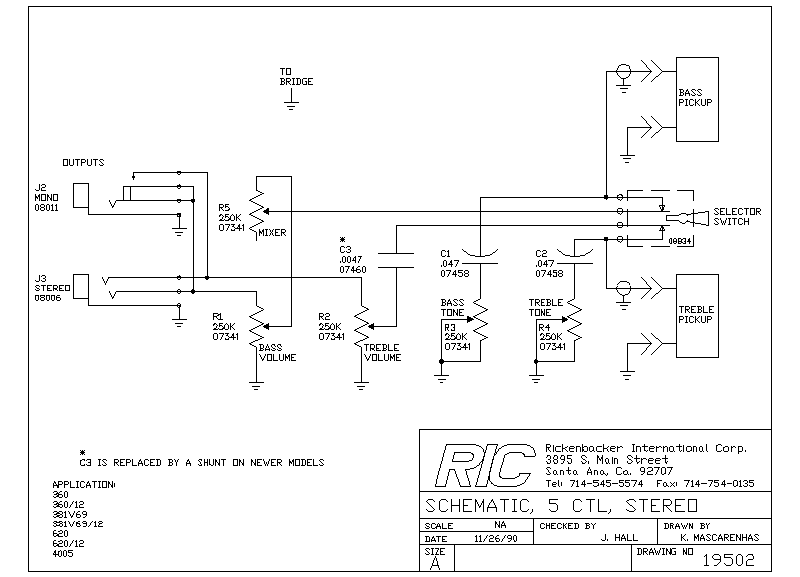

5 CNTL, 2 P/U, Stereo |
|
|
5 CNTLl, 2 P/U, Stereo |
|
|
5 CNTL, 3 P/U, Stereo |
|
|

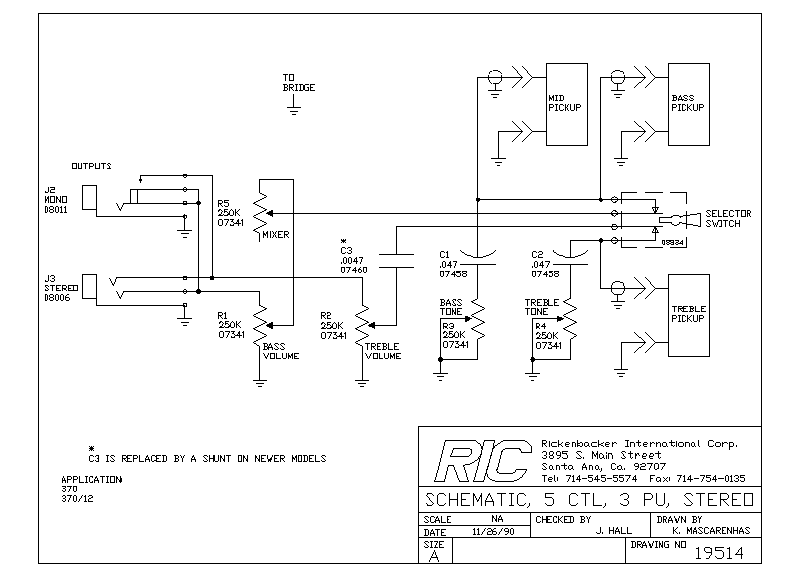

5 CNTL, 3 P/U, Stereo |
|

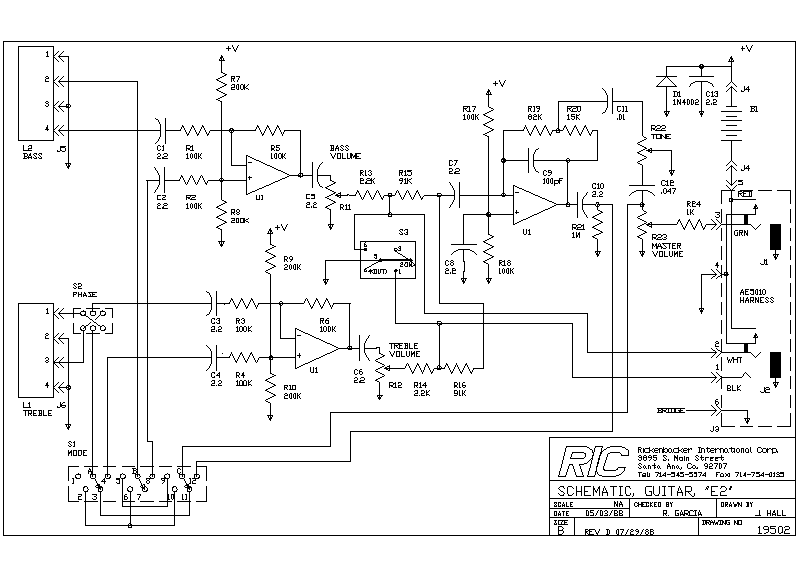

| 381JK LE (with E2 option) |
-- |
|

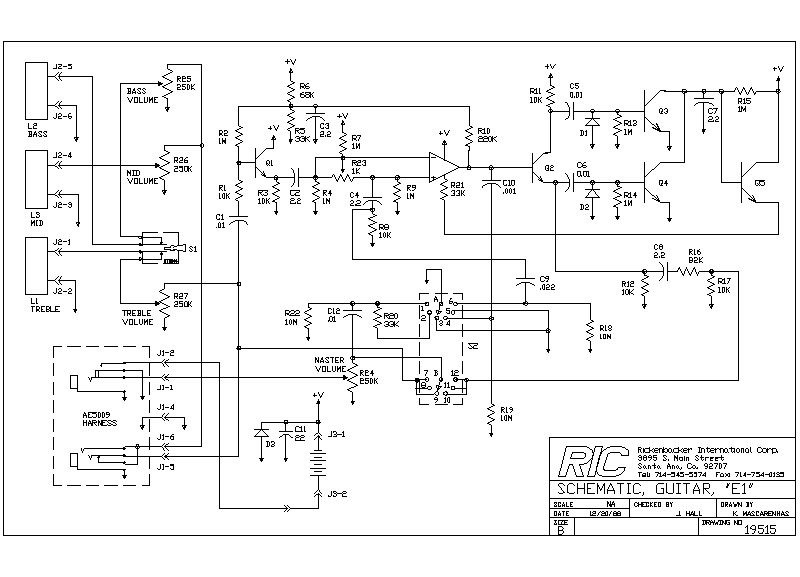

| 370/12RM LE (with E1 option) |
-- |
|
| Bass |
2 CNTL, 2 P/U, Mono |
|
|

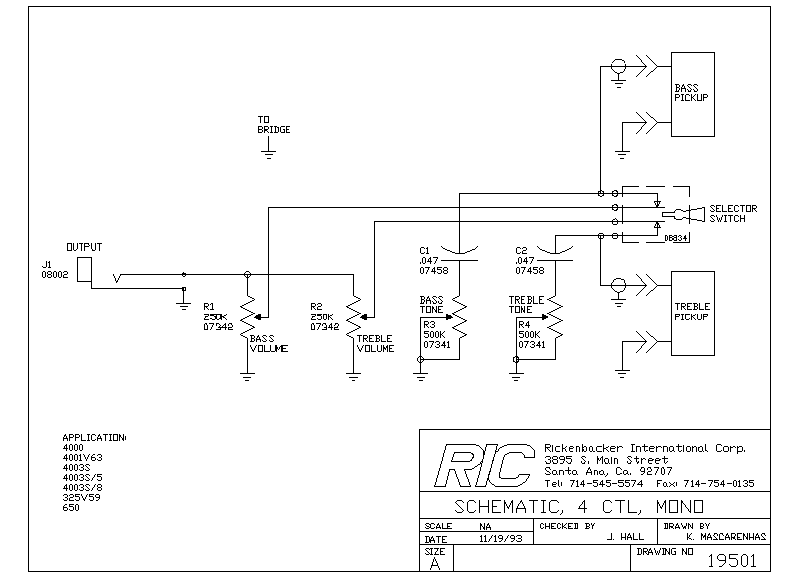

4 CNTL, 2 P/U, Mono |
|
|
5 CNTL, 2 P/U, Stereo |
|
|

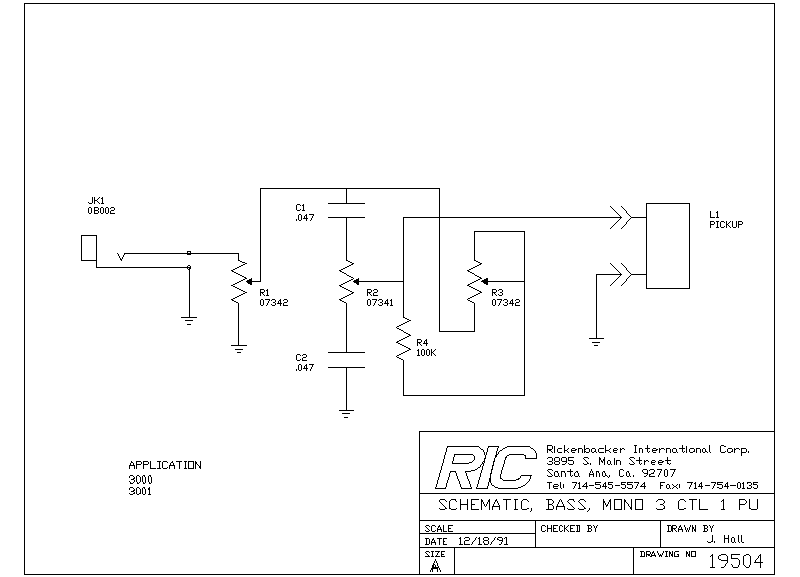

3 CNTL, 1 P/U, Mono |
|
|

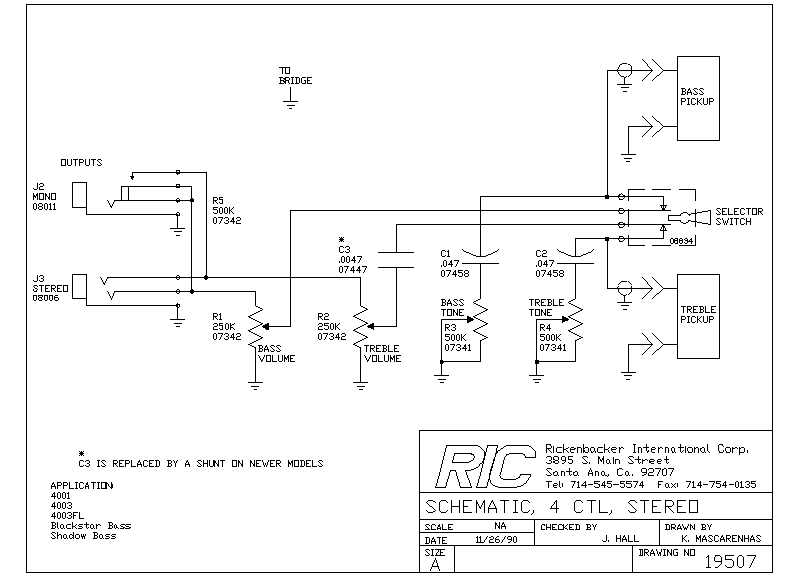

4 CNTL, 2 P/U, Stereo |
|
|

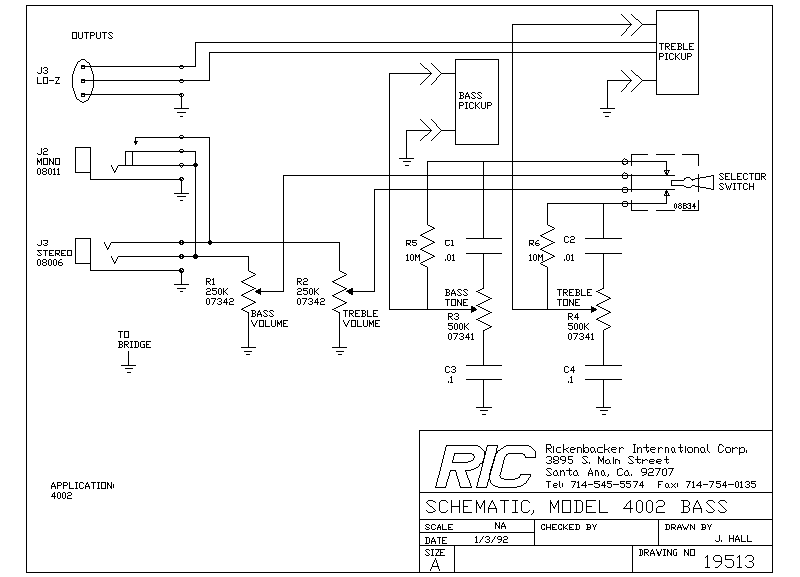

4 CNTL, 2 P/U, Stereo, Hi & Lo Z |
|
|
